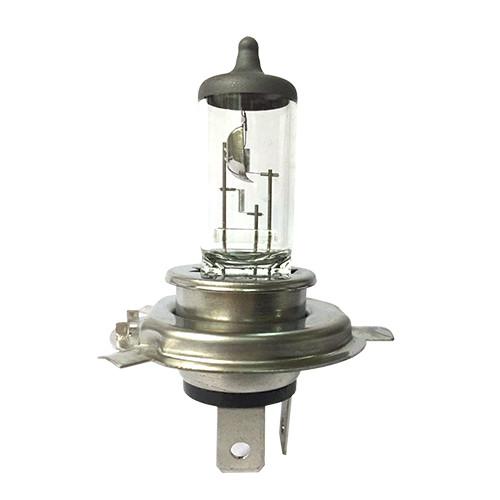

12V 55W 60W Halogen Heat Lamp Grinder Projector Quartz Halogen Bulb
Halogen lamps are made of tungsten filaments but are enclosed in a
smaller quartz glass envelope. Because the glass bulb is so close
to the filament, it would melt easily if it were made of glass. The
gas in the glass bulb is composed of different gases to form a
halogen lamp group. These gases have a very interesting property:
they combine with tungsten vapor. If the temperature is not high
enough, the halogen gas combines with the tungsten atoms to
evaporate and redeposit on the filament. This cycling process keeps
the filament going for a lot of time. Plus, it can run hot
filaments, which means you get more light energy. You still get a
lot of heat, but because the quartz glass bulb is so close to the
filament, it gets hotter than a normal light bulb.
Halogen bulbs can also operate at higher temperatures than ordinary
incandescent bulbs, and they are brighter and more efficient.
However, at this temperature, ordinary glass may soften, so halogen
bulbs need to use quartz glass with a higher melting point. Since
quartz glass cannot block ultraviolet rays, halogen bulbs usually
require the use of additional ultraviolet filters.
Specification Of Quartz Halogen Bulb
| Name | Quartz Halogen Bulb |
| Power | 60w |
| Lumen Flux(Lm) | 1000 Lumen |
| Working Lifetime(Hour)5 | 00 Hours |
| Color | Yellow, Warm White , Blue Yellow, Clear/Bule/Yellow/Rainbow
Customized |
| Application | Grinder Projector Quartz Halogen Bulb |
| Voltage | 12v |
| Color Temperature(Cct) | 3300-5500K |
| Material | Quartz Glass+Stainless, Uv Quartz Glass |
| Dimmable | Yes Or No Customized |
Catalogue Of Quartz Halogen Bulb
| Model | Specification | Lumen(Lm) | Average Life(H) | Base | Application |
| Quartz Halogen Bulb | 22.8V 40W | 1000 | 1000 | G6.35 | Grinder Projector Lamp |
| Quartz Halogen Bulb | 22.8V 50W | 1000 | 1000 | G6.35 | Surgical Shadowless Light Bulb |
| Quartz Halogen Bulb | 24V 50W | 1000 | 100 | E11 | Medical Single Hole Cold Light |
| Quartz Halogen Bulb | 24V 250W | 6250 | 50 | G6.35 | Surgery Shadowless Halogen Bulb |
| Quartz Halogen Bulb | 75V 350W | 8750 | 2000 | GX6.35 | Car Fog Lights Front Lighting |
| Quartz Halogen Bulb | 75V 400W | 8750 | 2000 | GX6.35 | Photography Tungsten Halogen Bulb |
| Quartz Halogen Bulb | 80V 1200W/230V 1000W | 30000 | 300 | G22 | Quartz Concentrating Tungsten Halogen Bulb |
| Quartz Halogen Bulb | 100V 500W | 12500 | 50 | GY9.5 | Optical Instrument Microscope Lamp |
| Quartz Halogen Bulb | 110V 600W | 13200 | 500 | P40s/41 | Train Locomotive Headlights Car Tail Light |
| Quartz Halogen Bulb | 120V 650W | 16250 | 300 | GY9.5 | Commercial Video Lights Stage Lights |
| Quartz Halogen Bulb | 120V 2000W | 50000 | 300 | GY16/G22 | Film And Television Fill Light |
| Quartz Halogen Bulb | 127V 600W | 15000 | 75 | GY9.5 | Ball Halogen Lamp Stage Video Lamp |
| Quartz Halogen Bulb | 230V 650W | 16250 | 300 | GY9.5 | Ball Halogen Lamp |
| Quartz Halogen Bulb | 230V 800W | 20000 | 300 | R7S | High Power Film Bulbs |
| Quartz Halogen Bulb | 230V 1000W | 30000 | 300 | G22/GX9.5 | Video Bulb Aviation Ship Light Stage Spot Bulb |
| Quartz Halogen Bulb | 230V 3000W | 75000 | 300 | G38/GY16 | Film and Television Wedding Performance Spotlight Stage |
| Quartz Halogen Bulb | 230V 5000W | 125000 | 300 | G38 | Wedding Bar Stage Light Bulbs |
| Quartz Halogen Bulb | 28v 75w | 1875 | 2000 | 1982SP | Railway Locomotive Halogen Bulbs |
| Quartz Halogen Bulb | 115V 575W | / | 300 | G9.5 | ETC Stage Soft Spot Zoom Light |
| Quartz Halogen Bulb | 115v 750w | / | 2000 | G9.5 | Film And Television Photography Stage |
| Quartz Halogen Bulb | 30V 200W/250W | / | 2000 | / | Lighting Display Bulbs |
| Quartz Halogen Bulb | 230v 115V 575W | / | 2000 | / | Stage Film And Television Light |
| Quartz Halogen Bulb | 115V 1000W | / | 2000 | / | Halogen Display Optic Lamp |
| Quartz Halogen Bulb | 120V 500W | / | 100 | / | Stage Halogen Bulbs |
| Quartz Halogen Bulb | 230V 1250W | / | 300 | / | Iodine Tungsten Lamp |
| Quartz Halogen Bulb | 230V 2000W | / | 300 | / | infrared heater |
Tips to Improve the Life Of Quartz Halogen Bulb
➊ Keep the surface of the bulb clean, and do not touch the glass
part of the bulb directly with your hands during use
If there are fingerprints, wipe with a dry cloth dipped in alcohol.
❷ Try to avoid strong vibration before and after using the bulb,
and handle it with care to avoid burning the filament.
❸ The light bulb will generate high temperature during use, so
please do not touch it with your hands, and do not use flammable
and explosive items
near.
❹ The filament is brittle just after the bulb is turned off, so
avoid vibration, do not move it immediately, and
Try to move the filament only after it has cooled down.
